POWER & TORQUE

Power
170 PS @ 7,500 RPM (97 Octane fuel)

Torque
182 Nm @ 5,700 RPM

POWERTRAIN

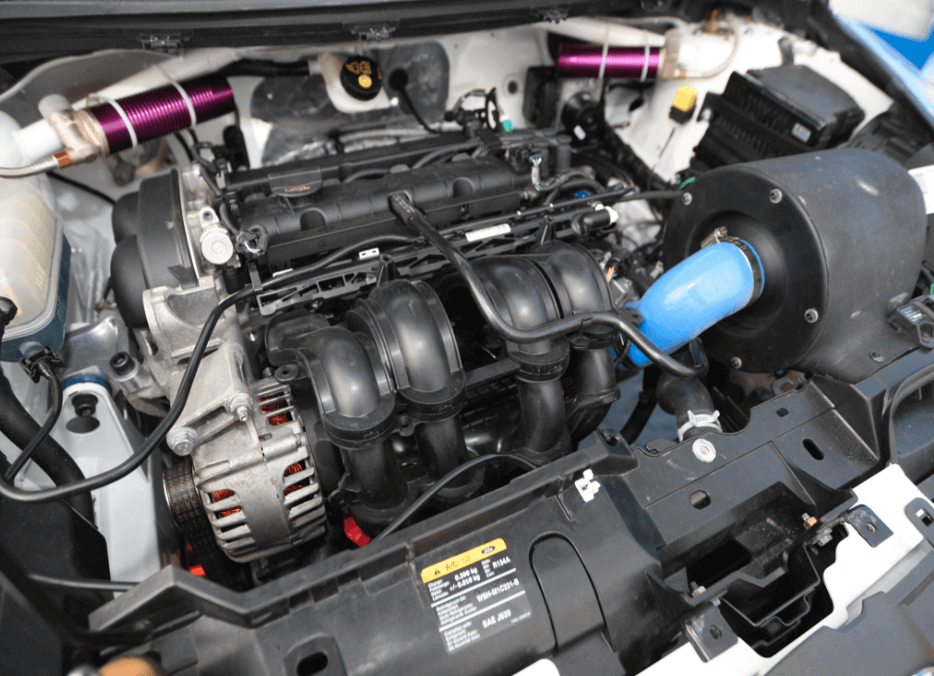

Engine
1.6 Zetec 16V – 1598cc – Ti-VCT. 4 cylinders in line. DOHC. 16 valves. Alloy cylinder head and block. Variable cam timing.

Transmisson
Five speed sequential gearbox developed by Sadev with plated limited slip differential and uprated driveshafts. ECU developed by Pi with flat shift feature with full throttle closed loop control shift.

SUSPENSION & BREAKS

Suspension
Reiger adjustable dampers with Eibach springs, spherical jointed top mounts front and rear. Front dampers adjustable for bump and rebound. Standard rear beam with uprated mounts. 2-bolt clamped front upright. Adaptor pin mounted in uprights with spherical bearing connecting the lower arm. Five stud hub.

Breaks
Gravel (front): 285 mm AP ventilated discs with four piston competition calipers.
Asphalt (front): 310 mm AP ventilated discs with four piston competition calipers.
Rear: 280 mm AP ventilated discs with single piston calipers.

WHEELS & STEERING

Wheels

Gravel: OZ 6”x15”

Asphalt: OZ 6.5”x16”

Steering

ELECTRONIC
